ArmorTherm insulated metal structural panels offer a superior solution for achieving LEED credits and green building standards across various applications, including walls, roofs, and floors. These panels are distinguished by their exceptional strength, thermal efficiency, light weight, and ease of installation.

Key features of ArmorTherm panels include:

  • Proprietary Polyisocyanurate (PIR) Foam Blend: This advanced insulation material contributes significantly to the panels’ high thermal performance.
  • Unique Steel Edge Stiffener Design: This innovative design enhances the structural integrity of the panels, making them incredibly strong.

Compared to traditional building methods and materials, ArmorTherm panels provide significant advantages:

  • Lower Construction Costs: The efficiency of these panels leads to reduced overall project expenses.
  • Faster Assembly Times: Their ease of installation contributes to quicker construction schedules.
  • Lasting Value and Durability: The robust design and materials ensure a finished structure with long-term performance and resilience.

In summary, ArmorTherm panels provide an unmatched combination of structural and energy-saving properties, making them a cost-effective and efficient choice for sustainable construction.

Technical Info & Performance Specs

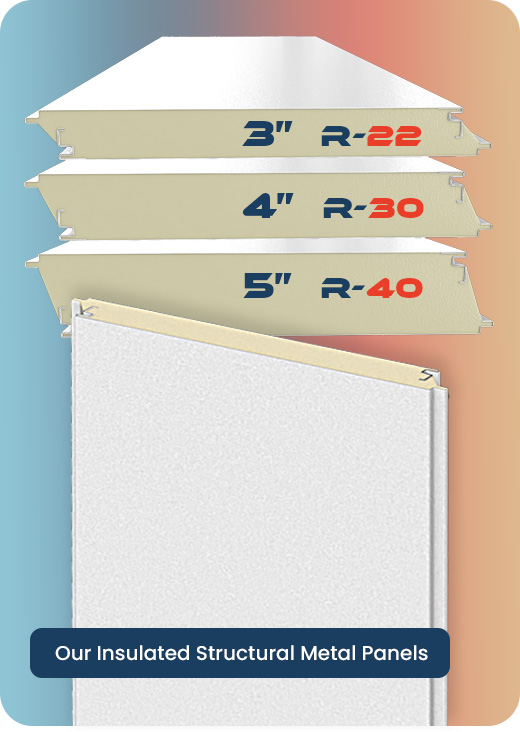

Superior 8.0 R-Value per 1” thickness (R24-R40)

26-gauge exterior steel sheets integrated with twin 20-gauge S-shaped steel stiffener

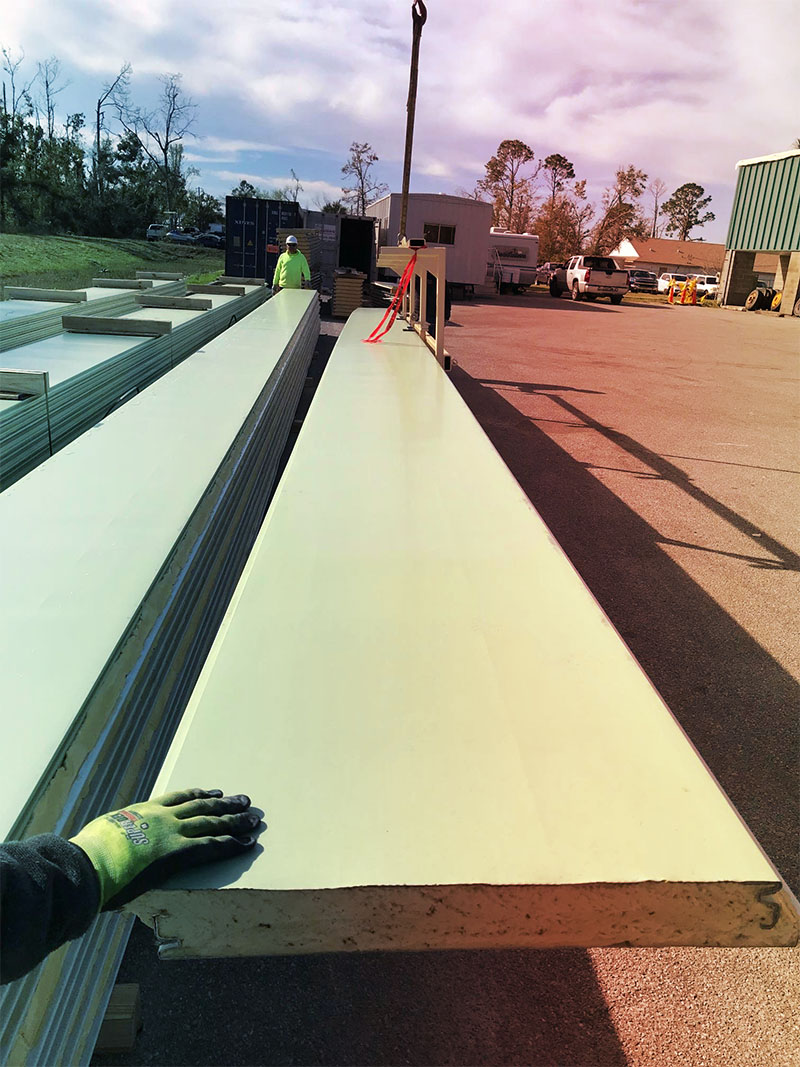

Custom lengths from 8' to 50'

24" panel width optimizes structural performance

CAT5 wind load ratings to over 150 Mph

Seismic resistance, up to 8.0 on Richter scale

Exceptional load bearing properties coupled with improved spanning capabilities.

25 successful environmental and structural tests. ASTM, UL & FM.

Meets High Velocity Hurricane Zone approval. Florida (FL 14029)

Reduced labor costs & building dry-in time

Easy assembly

High acoustical rating & exceptional moisture, mold , insect resistance

Panel Structural Detail

Panels are Highly Tested & Approved

Acoustic TestsSound Transmission Loss TestsASTM E 90-99; ASTM E 413-87; ASTM E 1332-90
Fire PerformanceFire Test of Building
Construction & Materials
Surface Burning Characteristics of Building Materials
Self-Ignition, Rate of Burn & Smoke Density Test
ASTM E119; ANSI A2.1
NFPA 51; UL 263
ASTM E 84-03; ANSI 2.5; NFPA 255; UL 783
ASTM D-1929-96; ASTM D-2843-99; ASTM D-635-06
Miami-Dade Test ProtocolsLarge Missile Impact & Cyclic Wind Pressure Test @ 45,60 & 100
PSF
Uniform Static Air Pressure Test @ 45,60 & 100 PSF
TAS 201 & 203

TAS 202 & ASTM E 330-02
Structural PerformanceAxial Compression w/ Static Wind Pressure Test
Compressive Load Test
Gravity Load Test
Racking Load Test
Static Load Test
Tensile Tests
Transverse Load Tests
ASTM E-72-05
ASTM E-72-05
SFBC Sec. 23142
ASTM E-72-05
ASTM E455, Section 5.1.3.1 (Diaphragm Standard)
ASTM E 8-08
ASTM E 72-05; ASTM E 330-02; ASTM E 1592-05
Vapor Barrier PerformanceAir & Water Infiltration Tests
Standing Water Test
ASTM E-283; ASTM E-331
FM 4471
